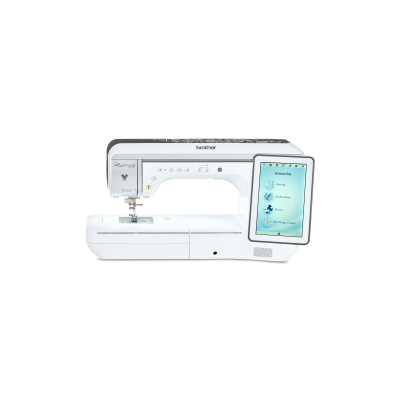

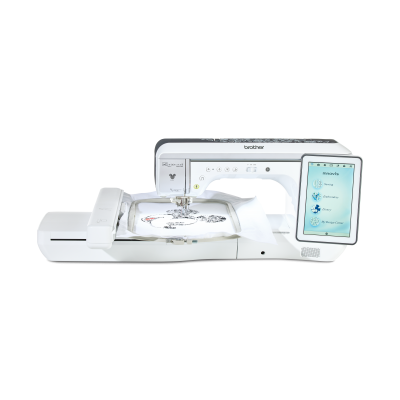

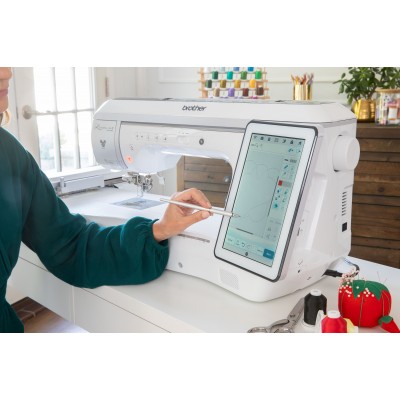

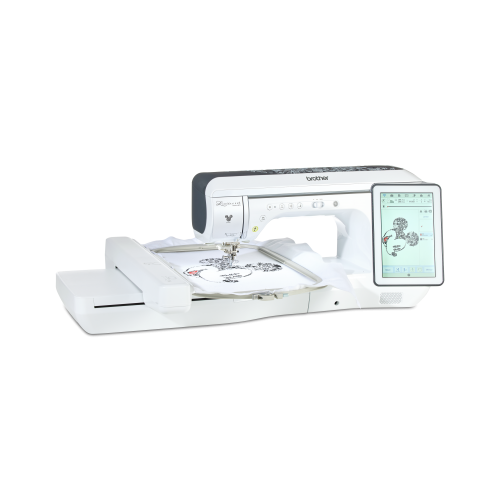

Brother Luminaire Innov-is XP3 Sewing And Embroidery Machine

  • £13,499.00


Available Options

Brother Luminaire Innov-is XP3 Sewing And Embroidery Machine


Say hello to the Luminaire Innov-is XP3 – the latest and greatest sewing, embroidery and quilting machine from Brother.

The Luminaire Innov-is XP3 is the ultimate word in luxury sewing experience. Packed with Brother’s revolutionary Stitchvision projection technology, over 1,500 embroidery patterns, 844 stitch designs, Disney magic, built-in design capabilities and wireless connectivity, it’s a machine that’s as brilliant as your ideas.

Stitch with consistent quality, tie-off stitches at the touch of a button, feed denims and silks with ease, automatically sew buttonholes.

With StitchVision technology unlock the precise placement of stitches and embroidery designs. With our InnovEye technology you can even convert scanned images into embroidery data in just a few seconds – with no extra software required.

The ability to scan the entire embroidery area provides virtually endless creative options and helps take the guesswork out of your projects.

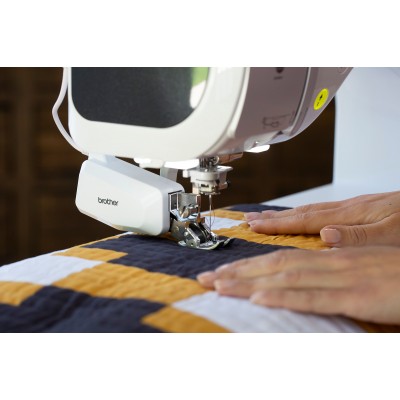

Size really does matter on the Luminaire XP3. With Brother’s largest workspace, longest arm and biggest embroidery frame oversize projects are effortlessly accommodated. Enjoy endless quilting with the Luminaire’s edge-to-edge quilting capability.

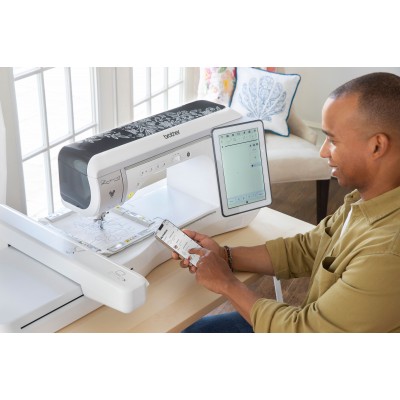

The Luminaire XP3 has powerful wireless capabilities, so you can transfer embroidery designs directly from your PC. You can even send your images from a smart phone or tablet, get alerts when it’s time to change thread and enable multiple Brother machines to work together. You can even connect your ScanNCut.

It’s a machine that’s as brilliant as your ideas.

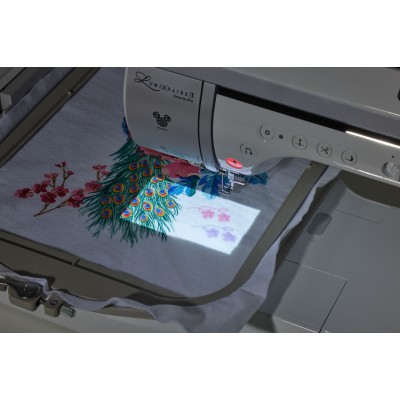

  • Revolutionary built-in projector

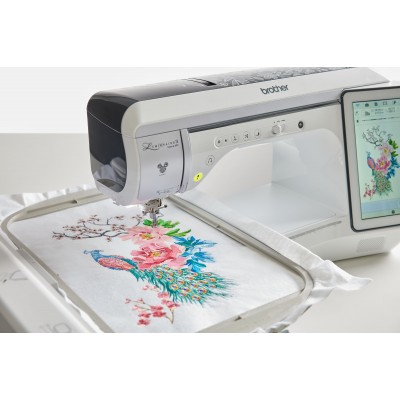

  • Brother’s largest embroidery frame – 408 x 272 mm (16 x 10.7")
  • Super long arm 13.1" (332 mm) workspace
  • Hyper wide-view camera
  • Camera detecting buttonhole function
  • Over 1,500 embroidery designs – 192 are Disney!
  • My Design Center
  • Accessories included:

    • Zigzag foot “J” (on machine)
    • Advanced monogramming foot „N+“
    • Overcasting foot “G”
    • Zipper foot “I”
    • Buttonhole foot “A+”
    • Buttonhole foot stabilizer
    • Blind stitch foot “R”
    • Button fitting foot “M”
    • Compact dual feed foot
    • Regular dual feed foot (on compact dual feed foot)
    • Straight stitch foot
    • Free motion quilting foot “C”
    • Free motion echo quilting foot “E”
    • Free motion open toe quilting foot “O”
    • Embroidery Foot “W”
    • ¼“ Quilting Foot (Piecing Foot) with Guide
    • Adapter
    • Screw (small)
    • Needle set
    • Twin needle
    • Ball point needle set
    • Bobbin × 10 (One bobbin is on machine.)
    • Seam ripper
    • Scissors
    • Cleaning brush
    • Eyelet punch
    • Screwdriver (small)
    • Screwdriver (large)
    • Multi-purpose screwdriver
    • Spool cap (small)
    • Spool cap (medium) × 2 (One spool cap is on machine.)
    • Spool cap (large)
    • Thread spool insert (mini king thread spool)
    • Spool Stand
    • Spool cap (XL) x 2
    • Spool holder x 2
    • Spool cap base x 2
    • Spool felt x 2
    • Ring x 4
    • Bobbin clip × 10
    • Spool felt (on machine)
    • Spool net × 2
    • Embroidery needle plate cover
    • Knee Lifter
    • Alternate bobbin case (no colour on the screw)
    • Standard bobbin case (green marking on the screw) (on machine)
    • Straight Stitch Needle Plate
    • Cord guide bobbin cover (with single hole)
    • Bobbin cover (with mark) (on straight stitch neelde plate)
    • Bobbin cover (on machine)
    • Embroidery frame (medium) H 100 mm × W 100 mm (H 4 inches × W 4 inches)
    • Embroidery frame (large) H 180 mm ×W 130 mm (H 7 inches × W 5 inches)
    • Embroidery frame H 272 mm × W 272 mm (H 10-5/8 inches × W 10-5/8 inches)
    • Embroidery frame (LL) H 408 mm × W 272 mm (H 16 inches × W 10-5/8 inches)
    • Scanning frame
    • Magnet × 6
    • Embroidery bobbin thread
    • Embroidery positioning sticker sheets x 2
    • White calibration stickers (solid)
    • Stabilizer material
    • Grid sheet set
    • Chalk pencil
    • Dual purpose stylus
    • Dual purpose stylus holder
    • Accessory case
    • Advanced multi-function foot controller
      - Main foot controller
      - Side pedal
      - Mounting plate
      - Mounting screw × 2
    • Couching dual feed foot
    • Yarn guide for sewing couching
    • Embroidery couching foot “Y”
    • Yarn guide for embroidery couching
    • Yarn threader
    • End point stickers (4 sheets, 243 stickers per sheet)
    • Fine tipped stylus pen
    • Dust cover
    • Operation Manual (Sewing)
    • Operation Manual (Embroidery)
    • Embroidery Design Guide
    • Disney Design Guide



    Machine net weight 32KG.
    Included accessories subject to change without notice.

    Finance
    Finance Option

    Write a review

    Please login or register to review

    Display

    Display Size10,1"
    Type of ScreenHigh-Resolution IPS LCD-Touchscreen

    Threading

    Adjustable Bobbin Winding AmountYes
    Adjustable Thread TensionAutomatic
    Automatic Thread CutterYes
    Bobbin WinderIndependant
    Lower Thread SensorYes
    Upper Thread SensorYes
    Needle Threading SystemAutomatic

    Environment

    Eco Mode (Auto Power Off/Sleep Mode)Yes
    Voltage220 - 240V

    Sewing Features

    7 Point Feed DogYes
    Adjustable presser footElectronic
    Automatic reverse / reinforcement stitchYes
    Bobbin WorkOptional
    Built-In Lettering Styles3
    Camera Detecting Buttonhole footYes
    Circular SewingOptional
    Continuous Automatic Pressure System (ICAPS)Yes
    Customizable Presser Foot MovementYes with enhanced UI
    Drop feed settingElectronic
    Electronic slide speed controlyes
    Extension Wide TableOptional
    Free Motion Embroidery KitOptional
    Knee lift5 Steps Electronic
    Lock stitch buttonYes
    Longer Feed DogYes
    Longer J-FootYes
    Max. Sewing Speed (Stitches per minute)1050
    Max Sewing Speed for Decorative Stitches710
    Mechanical Dual FeedOptional
    Multi-Directional SewingYes (up to 8 sideways)
    My Custom StitchYes
    Needle Stop Position Control Up/DownYes
    Projector Guideline MarkerYes
    Snap on Presser Feet SystemYes
    Speed control customised for zigzag widthYes
    Workspace (cm)33.3
    Buttonholes25
    Combine stitchesYes
    Direct Dual FeedYes
    End Point Setting Pin FunctionYes
    Free arm sewingYes
    Mirror imagingYes
    Multi-function foot controllerYes
    Number of sewing stitches *incl. buttonholes844
    Presser Foot Levelling ButtonYes
    Projector Gridline MarkerYes (gridlines, 3 colours)
    Repeated single sewingYes
    SFDS (Square Feed Drive System)Yes
    Stitch Length (mm)5
    Stitch Width (mm)7

    Machine Information

    Machine SizeX-Large
    Product TypeCrafting, Embroidery, Quilting, Sewing
    Skill LevelExpert

    Warranty Information

    WarrantyBrother 5 year Warranty *Commercial use only 1 year warranty

    Embroidery Features

    Colour ShufflingYes
    Creating a Custom Thread TableYes
    Echo Quilting Around the Motif ButtonYes
    Embroidery Frame Clearance for Bobbin ChangeYes
    Font Size Selection (L-M-S)Yes
    Jump Stitch TrimYes
    Max Embroidery Speed (Stitches per Minute)1050
    Multiple Line Text InputYes
    My Design CenterYes more enhanced
    New UI (Slide Scroll Operation)Yes, Enhanced (Slide Scrolling, Pinch-in/out, Flick)
    Number of Hoops (Standard Accessory)4
    Number of Spool Stands2
    On Screen Video TutorialsYes
    Pattern - Size, Change Rotation & MirrorYes
    Progress Indication BarYes
    Realistic Preview of PatternsYes
    Redo/Undo When Embroidery EditingYes
    Single Colour Pattern ConverterYes
    Stippling FunctionTrapunto-like Camera Scan and Add Stippling/ Stippling in Embroidery Edit/ Free Hand Quilitng
    Thread Colour SortingYes
    Built-in Embroidery Frame Patterns140 (10 shapes x 14 stitch types)
    Built-In Lettering Styles (Embroidery)28
    Built-In Patterns1554
    Camera with Scan Function (Built-in Camera)Background Scanning, Image Scanning, Live Camera Positioning, Viewing needle drop point
    Converting scanned images to embroidery dataYes with My Design Center
    Couching EmbroideryYes
    Embroidery Area in mm408 x 272
    Embroidery Positioning FunctionLive camera positioning, Projector embroidery
    Extension Wide TableOptional
    Font Editing Functions/Multiple Lines and Alignment (L-C-R)L-C-R
    Frames Included100 x 100 mm (4 x 4”), 180 x 130 mm (7 x 5”), 360 x 240 mm (14 x 9.5”), 408 x 272 mm (16 x 10.7”)
    LED PointerEmbroidery foot included
    My Design SnapMobile app for perfect placement of embroidery designs
    Projector Embroidery PointerYes

    Weight and Measurements

    Machine Dimension (mm)690 x 322 x 349
    Weight (kg)20

    General Features

    Accessory BoxYes
    Accessory CompartmentYes
    Bobbin TypeHorizontal
    Machine TypeElectronic
    Insertion of BobbinQuick Set Bobbin
    Instructional Manual PDF ViewerYes
    Lighting8 LEDs
    Number Of Needles1
    One-Finger Needle Plate RemovalYes

    Connectivity

    USB Port2 Hosts (2.0/2.0) / 0 Slave
    Wi-LAN FunctionYes
    Design Database Transfer app for Windows PCYes
    My Design Snap AppYes
    My Stitch Monitor AppYes
